STRENGTH & DUCTILITY

ARS 550D TMT Bars

ARS has always been striving to achieve excellence and enhance our elaborated product arsenal. To achieve the same, we keep introducing brilliant additions to our evolving product line. It is the result of company’s sustained peak performance, strong leadership, commitment and determination that ARS 550D has emerged as one of the best TMT Bars manufacturers and suppliers in South India.

ARS 550D OFFERS

Maximum Safety and Savings

ARS 550D TMT Bars are expertly manufactured using superior quality raw materials to fulfill the requirements of the Infrastructure industry. The new-engineered design with exclusive vertical and horizontal lugs provides exceptional concrete-steel powerbond. Fortified with high yield stress, shock resistance and elongation properties, ARS 550D TMT Bars provided maximum earthquake and corrosion resistance. The use of ARS 550D TMT Bars leads to maximum savings in steel in terms of weight and cost. ARS 550D is undeniably the foremost preference of construction industry. It is here to build the foundation of a strong, sustainable future and revolutionize the infrastructural landscape of the country.

Our Quality
CONTROL

The company always ensures to enhance its customer experience; therefore there are in-house facilities like OES (Optical Emission Spectrometry) and Lab facilities for Macro Analysis of the products. This special quality of ARS 550D TMT bars is also labeled as ARS 550D "Fe 550D”. Here, “Fe” signifies ferrous denoting iron, “550” indicates the minimum yielding strength and “D” indicates ductility. The high ductility amplifies the shock withstanding capacity and makes ARS 550D earthquake and fire resistant up to 500 Degree Celsius. Driven by values, commitment, and a strong urge to deliver the best to its customers, ARS 550D ensures to surpass the quality control specifications enlisted by BIS.

ARS 550D TMT Bars

  • High Strengh
  • Bendability
  • Thermal Resistance
  • High Quality Standards
  • Bond Strength with Concrete
  • Weldability
  • Earthquake Resistance
  • Tried and Trusted

Physical Properties

Properties Unit IS:1786 Fe-550D ARS 550D BS:4449 ASTMA615-GR75
Properties Unit IS:1786 Fe-550D ARS 550D BS:4449 ASTMA615-GR75
Yield Strength (YS) N/sq.mm. 550 Min. 550 Min. 460 Min. 520 Min.
Tensile Strength(TS) N/sq.mm. 600 Min. 600 Min. 510 Min. 690 Min.
YS/TS Ratio 1.1 Min. 1.1 Min. - -
Elongation % 14 Min. 16 Min. 14 Min. 7 Min.

Chemical Properties

Constituents Unit IS:1786 Fe-550D ARS 550D BS:4449 ASTMA615-GR75
C % 0.25 Max. 0.25 Max. 0.25 Max. 0.3 Max.
S % 0.04 Max. 0.04 Max. 0.05 Max. 0.05 Max.
P % 0.04 Max. 0.04 Max. 0.05 Max. 0.05 Max.
S+P % 0.075 Max. 0.075 Max. - -
CE % 0.42 Max. 0.42 Max. 0.51 Max. -

ARS 550D Features

High Tensile Strength and Ductility

D quality expertise for many years. 100% “D” quality (i.e. Low Sulphur, Low Phosphorous)

In-house Third Party Quality check by International Testing Agency (SGS) for each and every consignment, first of its kind in Southern India for TMT segment. Manufacturing using superior quality raw material

BIS certified

Due to high ductile property, ARS 550D TMT bars has increased shock withstanding capacity.

Confirmed saving (Approx Rs. 4000/- per ton) to the end user as certified by SERC - A leading Central Government Research Institute

ARS 550D Features

High Tensile Strength and Ductility

Going forward ARS has taken one more initiative of launching the Mobile Tech Express, an “On-road Testing Lab” with demo quality testing for TMT Rods & ARS 550D.

To provide technical guidance in building construction a value-added service to individual house builders, contractors, and engineers. Customers can avail of guidance and suitable advice about the selection of construction materials.

Interact with our qualified Civil Engineer on your queries at your building site regarding TMT Bars. Bend/Rebend test, Martensite (Ring) test will be conducted live at your site to demonstrate the quality of ARS 550D. Watch Videos of Multi-Point Testing conducted every day at ARS Factory to know about it before ARS 550D reaches your site.

Laboratory & TESTING

  • BEND & REBEND TEST

    Bend and rebend test is a testing method to check the quality of steel. Rupture and cracks if any present in a steel bar can be checked in this test. These test results are plotted in a bend/rebend test chart to identify the crack or rupture in the steel bars.

  • MARTENSITE &RING TEST

    Martensite (Ring) test is a quality control test to check the hardness, ductility, and strength of steel by analyzing the rings formed during the test.

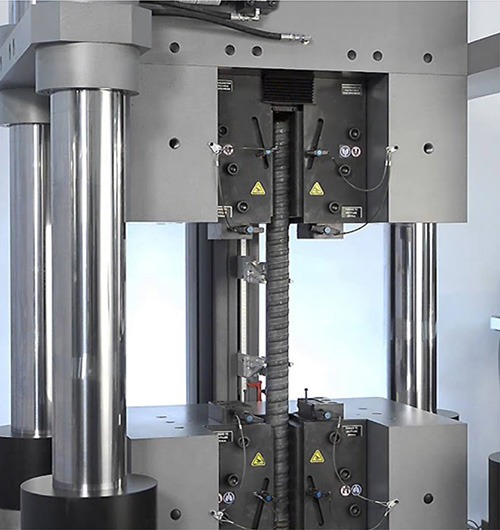

  • TENSILE TEST

    Tensile test which involves testing the tensile strength of steel is done in Universal Testing Machine (UTM) which is used to test the compressive strength and the tensile strength of steel.

  • QUENCHING PROCESS

    Quenching is a process of rapid cooling of a heated metal in water, oil or air to obtain certain material properties. For steel, hardness is achieved by this process.

  • BILLET MANUFACTURING

    Freshly made steel which is in the form of a rectangle or a metal bar is referred to as steel billet. Billets are be produced either directly by continuous casting or extrusion or indirectly by hot rolling in billet mills.

  • SPECTRO ANALYSIS TEST

    Spectro analysis test involves identification, sorting, and analysis of steel during incoming inspection, production, and before delivery.

Frequently
Asked
questions

What is Thermo Mechanical Treatment?

Thermo-Mechanical Treatment (TMT), is a metallurgical process that integrates work hardening and heat-treatment into a single process.

Since TMT bars undergo thermo-mechanical treatment, they are extremely ductile and have high tensile strength. This makes it usable for every shape. It also provides great resistance to fire, earthquake, and corrosion. It is also easy to transport because of its lightweight build.

TMT bars are divided into various grades – Fe415, Fe500, Fe500D, Fe550 and Fe600. The number denotes the yield strength of the TMT bars and the letter ‘D’ denotes the ductility. Each grade has different properties and applications and therefore it is important to choose the right grade by knowing its application and usage.

TMT bar which contains a higher amount of Sulphur makes it prone to fire and a high amount of phosphorus causes fatigue to the bars.

Often due to the interaction of the rebar with moisture and air, the surface of the rebar develops a reddish colour which is being misunderstood as corrosion. Reddish rebar can be used for construction without any hesitation as long as they are in proper physical shape, weight and strength.
